Types of Ground Protection Mats and Their Applications

Ground protection mats are designed to safeguard surfaces, provide stability, and ensure safe access for vehicles, equipment, and pedestrians across various terrains. Choosing the right type of mat is essential, as each option is designed for different weight capacities and usage scenarios. Broadly speaking, ground protection mats are available in two main types: High-Density Polyethylene (HDPE) mats and Low-Density Polyethylene (LDPE) mats. Both serve specific purposes, and understanding their differences will help you select the most suitable option for your project.

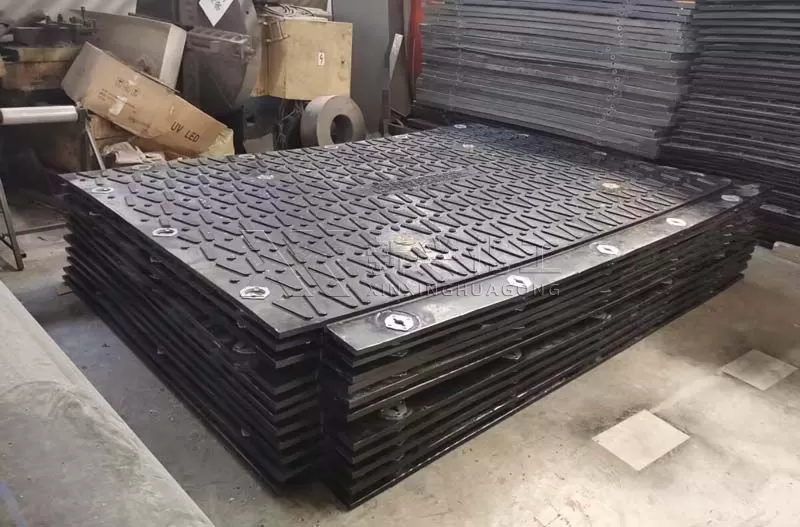

Super Heavy-Duty HDPE Ground Protection Mats

HDPE ground protection mats are engineered for demanding environments where heavy machinery is involved. Capable of withstanding axle loads of up to 80 tonnes on stable, even ground, these mats are commonly used with cranes, mining machinery, trucks, and other large construction equipment.

Key Features:

Material Strength: Manufactured from high-density polyethylene, these mats feature tightly packed particles, making them stronger and more resistant to pressure compared to lower-density options.

Size & Dimensions: Typically measuring 2400 mm x 1200 mm with a thickness of 12 mm, each mat weighs around 40 kg, requiring two people to handle safely.

Design & Handling: Depending on the manufacturer, mats are fitted with 4–6 handheld cut-outs for easier lifting and positioning. They are also designed to bend under pressure without cracking, ensuring flexibility during installation and use.

Durability: Resistant to UV rays and adverse weather conditions, HDPE mats are built for long-term performance in all climates. They are also available in black as standard, though some manufacturers offer additional colour options.

Traction Surface: The surface pattern may vary; some feature a dot or stud traction system to provide non-slip stability for machinery.

Sustainability: Many versions are produced from recycled plastics, combining environmental responsibility with high durability.

Best For:

Heavy construction sites

Mining operations

Infrastructure projects involving cranes and trucks

Long-term, high-pressure ground protection needs

Heavy-Duty LDPE Ground Protection Mats

LDPE mats are lighter in density and weight, making them easier to transport and install compared to HDPE mats. While they cannot bear the same load capacity, they remain highly effective for lighter vehicles, pedestrian traffic, and event flooring applications.

Key Features:

Load Capacity: Capable of supporting up to 10 tonnes per axle load on stable, even surfaces.

Size & Dimensions: Generally 2400 mm x 1200 mm in size, 12 mm thick, and weighing around 31 kg each.

Ease of Handling: Equipped with 2–4 handheld cut-outs (depending on the manufacturer), they are easier to move and install compared to HDPE mats.

Weather Resistance: Designed to withstand exposure to sunlight, rain, and other weather conditions without weakening.

Traction Pattern: A slip-resistant surface ensures secure footing and vehicle stability, particularly useful in event environments.

Recyclability: Like HDPE mats, many LDPE mats are made from recycled materials and can be recycled again after their lifespan.

Maintenance: Easy to clean with water or mild detergent, making them practical for frequent use at temporary sites.

Best For:

Walkways at outdoor festivals and events

Protecting turf in stadiums or sports arenas

Race tracks, concert venues, or temporary access roads

Small-scale construction requiring lighter load support

Choosing Between HDPE and LDPE Ground Protection Mats

The decision between HDPE and LDPE mats depends on the specific requirements of your project:

If your work involves heavy-duty machinery or industrial operations, HDPE mats provide the strength, durability, and load-bearing capacity needed for maximum ground protection.

For lighter traffic, pedestrian areas, or temporary event flooring, LDPE mats offer a more practical, lightweight, and cost-effective solution.

Both types share advantages such as recyclability, weather resistance, and ease of maintenance. By matching the mat type to your operational needs, you can ensure efficiency, reduce surface damage, and extend the lifespan of your investment.

Conclusion

Ground protection mats are versatile tools designed to meet different demands, from supporting heavy construction equipment to creating safe pedestrian walkways at large events. HDPE mats excel in heavy-duty, industrial settings, while LDPE mats are more suited for lighter loads and public applications. Understanding the differences in weight capacity, durability, and handling allows you to choose the right solution for your project.

By selecting the appropriate mat type and maintaining it properly, you’ll not only safeguard the ground but also improve safety, efficiency, and long-term cost savings.
