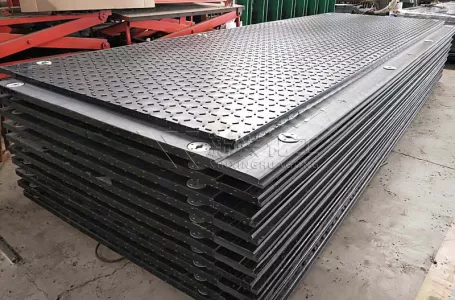

XINXING Amphi Mats are heavy duty composite access mats designed to create temporary roadways, equipment access routes and stable working platforms over mud, swamp, sand, snow, wet soil and other difficult ground conditions.
Manufactured from durable engineered polymer composite materials, these composite ground mats provide a reusable alternative to timber mats, plywood, steel plates and temporary aggregate roads. Their large panel format helps distribute vehicle loads across a wider area, reducing rutting, soil disturbance and repeated ground repair.
Amphi Mats are suitable for heavy trucks, drilling equipment, excavators, utility vehicles, tracked machinery and other industrial equipment. Multiple panel dimensions, thicknesses, traction surfaces and connection configurations are available for different project conditions.
The engineered composite structure provides impact, abrasion, moisture and weather resistance for demanding temporary access projects. Unlike traditional timber mats, Amphi Mats do not rot, splinter or become significantly heavier after exposure to rain and mud.
Large panels cover more ground with fewer joints. This can reduce the number of panels and connectors required for long access roads, equipment platforms and temporary working areas.
The broad panel surface helps distribute wheel or track loads over a larger ground area. This can reduce deep rutting and localised settlement when the mat specification is correctly matched to the vehicle load and ground-bearing capacity.

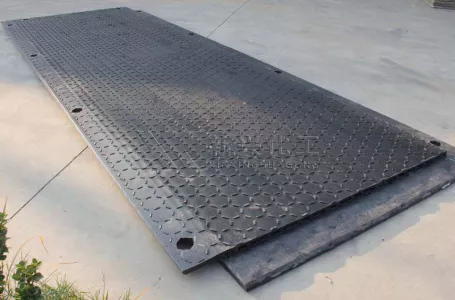

A raised anti-slip surface pattern improves tyre engagement and vehicle movement on wet, muddy, sandy or snow-covered routes. Surface patterns can be selected according to the intended vehicle type and operating conditions.
Depending on the selected model, Amphi Mats can use locking, bolted or overlapping connection systems. Connected panels can form straight roads, turning areas, parking zones and broad equipment platforms.
The non-absorbent surface allows mud, oil and site debris to be removed more easily. After use, the mats can be cleaned, inspected, stacked and transported to another project.
Available custom options may include:
Panel dimensions
Panel thickness
Material formulation
Surface traction pattern
Connection positions
Mat colour
Company logo
Asset number or private-label identification
| Specification | Reference Configuration |
|---|---|
| Product type | Heavy duty composite access mat and temporary roadway panel |
| Material | Engineered polymer composite; final material depends on the selected mat design |
| Available dimensions | Multiple large-format dimensions and project-specific customised sizes |
| Reference heavy-duty size | Approximately 6130 × 2130 × 88 mm, including the raised traction profile |
| Reference unit weight | Approximately 650 kg for the referenced large-format configuration |
| Reference load capacity | Up to 120 tonnes under suitable ground support and specified operating conditions |
| Reference temperature range | Approximately −45°C to +50°C for the referenced configuration |
| Surface | Raised anti-slip traction pattern |
| Connection options | Locking, bolted or overlapping systems depending on the selected mat model |
| Installation | Mechanical lifting and installation equipment are normally required |
| Colour and marking | Standard and customised options subject to order requirements |
| Typical applications | Construction, oilfields, drilling sites, utilities, wetlands, mining and industrial access |
The listed specifications are reference values rather than universal values for every Amphi Mat. Final dimensions, weight, load capability, material and connection configuration must be confirmed on the approved product drawing.
Total vehicle weight alone does not determine whether a heavy duty composite access mat is suitable. Axle load, tyre pressure, track contact area, traffic frequency, turning force, braking and underlying ground support must also be evaluated.
Large-format Amphi Mats are designed for long access roads and broad operating areas where fewer panel joints and faster coverage are required. They are suitable for construction roads, oilfield access, infrastructure projects and industrial equipment routes.
Overlapping panel designs help create a more continuous roadway surface and reduce exposed gaps between adjacent mats. They are suitable for soft ground, wetlands and routes exposed to repeated vehicle traffic.
Locking configurations provide additional control over panel alignment and movement. Different connector layouts can be used for straight roads, turning areas, intersections and temporary work platforms.
Custom dimensions, thicknesses, traction patterns and connection positions can be evaluated according to project loads, transportation restrictions, installation equipment and roadway design.

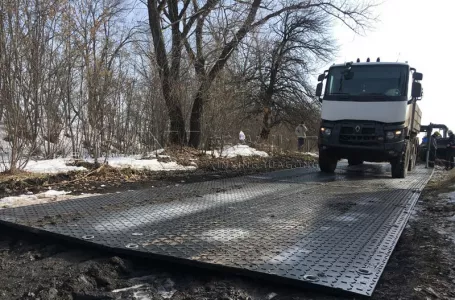

Build temporary access roads for trucks, excavators, loaders, cranes and other construction equipment while reducing damage to soft, prepared or environmentally sensitive ground.
Provide access to drilling locations, pipeline corridors, service areas and equipment staging zones in remote, muddy or swampy conditions.
Support temporary access for bucket trucks, cranes, excavators and maintenance vehicles across farmland, grass, utility corridors and uneven terrain.
Create temporary construction and maintenance routes for wind farms, solar farms, substations and power transmission projects.
Establish controlled equipment routes across mud, marshes, saturated soil and other low-bearing-capacity surfaces. Extremely weak ground may also require geotextiles, drainage or subgrade preparation.
Create reusable access routes, vehicle staging areas and work platforms for repeated heavy machinery movements at mines, plants and industrial maintenance sites.
Establish temporary roads and operating areas in locations where permanent infrastructure is unavailable or cannot be constructed within the required project schedule.
| Comparison | Amphi Heavy Duty Composite Mats | Standard Portable Mats |
|---|---|---|
| Panel format | Large-format composite panel | Smaller portable panel |
| Installation | Mechanical lifting normally required | Often installed manually |
| Best suited for | Heavy equipment and repeated industrial traffic | Light or medium vehicle access |
| Ground conditions | Mud, swamp, wet soil and difficult access conditions | Grass, landscaping and comparatively stable ground |
| Typical use | Temporary roads and large equipment platforms | Local ground and turf protection |
| Connection system | Locking, bolted or overlapping options | Basic two-way or four-way connectors |
| Number of roadway joints | Fewer joints over large areas | More joints required for the same area |
| Main industries | Construction, energy, drilling, mining and infrastructure | Events, landscaping, utilities and property maintenance |
For other access requirements, compare Amphi Mats with Dura Mats and portable ground protection products before confirming the most appropriate system.
Provide the following equipment and project information before selecting a mat:
Vehicle or equipment type
Maximum operating weight
Maximum axle load
Tyre size and inflation pressure
Rubber or steel track dimensions
Soil type and ground condition
Known ground-bearing capacity
Traffic frequency
Required roadway length and width
One-way or two-way traffic
Turning and braking requirements
Installation duration
Project temperature and weather conditions
Available lifting and installation equipment
This information allows XINXING to recommend the appropriate panel dimensions, thickness, traction surface, connection arrangement and estimated quantity.
The required quantity of heavy duty composite access mats should be calculated using the complete operating area rather than only the straight-line road length.
Quantity planning should include:
Required usable road width
Passing areas for two-way traffic
Vehicle turning and manoeuvring areas
Equipment staging and working platforms
Transition areas between stable and soft ground
Spare panels for route extension or replacement
Connectors and installation accessories
A project drawing or site layout can be used to calculate a preliminary mat and connector quantity.
Inspect the proposed route and identify weak ground, sharp objects, drainage channels, buried services and unsupported openings.
Remove large rocks, scrap metal and other debris that could create concentrated point loads beneath the panels.
Complete drainage, grading, geotextile installation or subgrade improvement where the ground is extremely weak or saturated.
Establish a stable starting point for the temporary roadway.

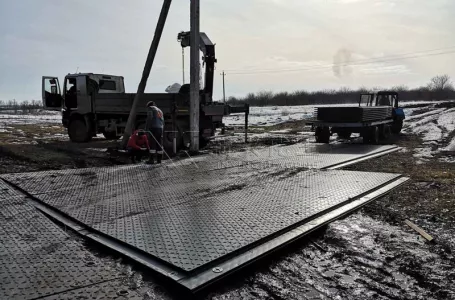

Use suitable lifting equipment and approved lifting procedures to position each large-format mat.
Align adjacent panels and install the specified locks, bolts or overlapping connections.
Conduct a controlled first vehicle pass before opening the roadway to regular traffic.
Inspect panel movement, ground settlement, surface damage and connector security regularly.
Amphi Mats are ground-supported access panels. They must not be used as freestanding bridges over trenches, ditches, drainage channels or unsupported gaps unless a qualified engineering design specifically approves the application.
XINXING has manufactured engineering plastic products since 1989 and supplies ground protection systems for construction, energy, utilities, industrial and temporary access projects.
Our manufacturing capabilities include moulding, extrusion, CNC machining, cutting, assembly, inspection, packaging and warehousing. This allows us to support different dimensions, thicknesses, surface patterns and connection configurations.
XINXING operates three factory sites with a combined factory area of more than 100,000 square metres, supporting different mat categories and project order quantities.
Buyers can source portable ground mats, heavy-duty road panels, overlapping access systems, connectors and outrigger pads from one manufacturer.
Our team can recommend a suitable heavy duty composite access mat based on equipment loads, ground conditions, roadway dimensions, traffic patterns and the operating environment.
Selected orders can be customised with different dimensions, thicknesses, traction patterns, colours, connection positions, logos and private-label identification.
Heavy duty access mats should be purchased according to an approved product specification rather than a general product name. Before confirming an order, buyers should review:
Approved panel dimensions and tolerances
Material and colour requirements
Unit weight
Surface traction pattern
Connection and hardware configuration
Logo or asset identification

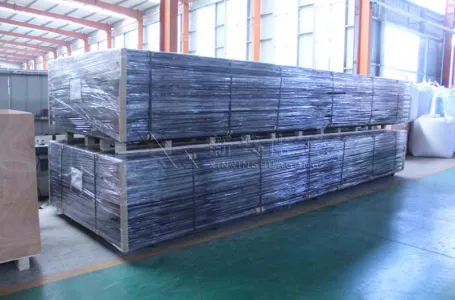

Packaging and container-loading method
Pre-shipment inspection requirements
If your tender or destination market requires a specific certificate, testing standard or third-party inspection, include the exact requirement in the enquiry. XINXING will confirm document availability and testing feasibility before order placement.
They are used to build temporary roads, equipment access routes and working platforms for heavy trucks and machinery over mud, swamp, sand, wet soil and other difficult surfaces.
Amphi Mats are manufactured from engineered polymer composite materials. The exact material formulation depends on the panel design, required mechanical performance and operating environment.
A referenced heavy-duty configuration is rated for loads up to 120 tonnes under suitable ground support and specified operating conditions. This figure is not a universal safe working load for every mat or project.
Yes. Amphi Mats are intended for difficult surfaces such as mud and swamp. Extremely weak or saturated ground may also require geotextiles, drainage, grading or subgrade preparation.
Custom dimensions and thicknesses are available for selected orders, subject to technical feasibility, project loads, transportation restrictions and order quantity.
Depending on the selected model, Amphi Mats may use locking, bolted or overlapping connection systems. The arrangement should be selected according to the road width, turning areas, ground condition and traffic direction.
Large Amphi Mat configurations can weigh several hundred kilograms. Suitable lifting equipment and approved handling procedures are therefore normally required.
Steel tracks create concentrated pressure and may damage certain traction surfaces. The machine weight, track width, track length and required movements should be reviewed before use.
No. They are designed as ground-supported access panels and should not be used to span open trenches, ditches or unsupported gaps without a separate engineered support structure.
Remove mud and site debris using water or suitable cleaning equipment. Inspect the panel surfaces, edges and connectors before stacking the mats on stable supports for storage or transportation.
Yes. Custom colours, logos, asset numbers and private-label identification are available for selected orders.
Provide the equipment model, operating weight, axle or track data, ground condition, required roadway dimensions, traffic frequency, project location, required quantity and destination port.
Send us your vehicle information, ground conditions, required roadway dimensions, traffic requirements and project location.
XINXING will recommend the appropriate heavy duty composite access mat dimensions, thickness, connection method and estimated quantity for your temporary access project.
Contact us for Amphi Mat specifications, project recommendations and a quotation.
