4000×2000MM Temporary Ground Mats

Product introduction

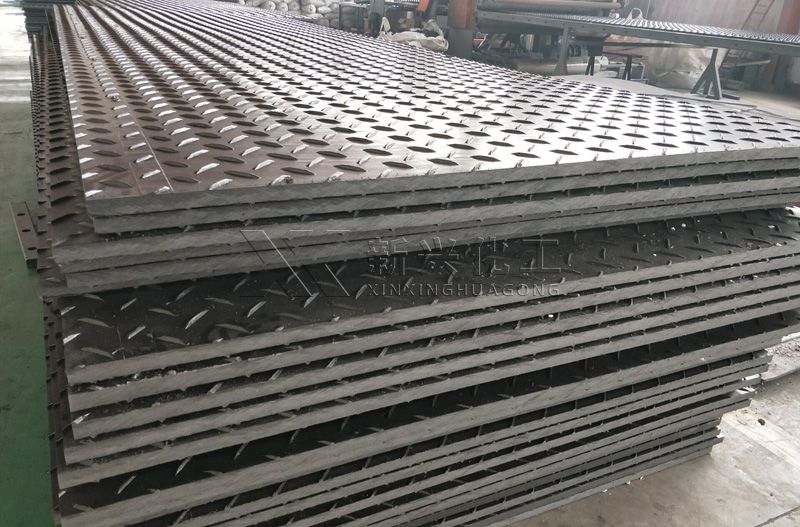

4000 × 2000MM Temporary Ground Mats

XINXING 4000 × 2000MM Temporary Ground Mats are large-format composite ground protection panels designed for temporary roads, construction access routes, equipment platforms and heavy vehicle access.

The raised traction surface improves vehicle grip on mud, grass, sand, snow and other unstable ground conditions. These reusable ground mats are suitable for construction, oil and gas, utilities, renewable energy and infrastructure projects.

Product Specifications

Item	Specification
Product name	BaseMat Temporary Ground Mat
Size	4000 × 2000 mm
Coverage	Approximately 8 m² per panel
Material	Composite UHMWPE
Structure	One-piece moulded panel
Surface	Raised anti-slip traction pattern
Colour	Black or customised
Connection	Project-specific connector system
Installation	Mechanical handling recommended
Application	Temporary roads and work platforms
Suitable ground	Mud, grass, sand, snow and prepared soil
Custom options	Thickness, colour, logo and connector layout

Load capacity depends on the mat thickness, vehicle axle load, tyre or track pressure and the bearing strength of the underlying ground.

Key Advantages

Large 8 m² Coverage

Each 4000 × 2000 mm mat covers a larger area than standard portable ground protection mats. Fewer panels are required to construct long access roads or wide equipment platforms.

Fewer Joints and Connectors

Large ground protection mats reduce the number of connection points, helping create a more continuous temporary roadway and simplifying installation and inspection.

Durable Composite UHMWPE Material

Composite UHMWPE provides excellent impact resistance, abrasion resistance and low moisture absorption. The mats do not rot, absorb water or splinter like timber products.

Improved Vehicle Traction

The raised surface pattern helps tyres maintain grip on wet, muddy, sandy or snow-covered ground, reducing wheel spinning and vehicle instability.

Reusable Ground Protection

The mats can be removed, washed, inspected and reused across multiple projects. They help reduce the use of disposable plywood, timber and imported aggregate.

Reduced Ground Damage

By distributing vehicle loads over a wider surface, the mats help reduce rutting, soil compaction and damage to grass, turf and prepared ground.

Typical Applications

Construction Sites

Create temporary access roads for trucks, excavators, loaders, cranes and construction machinery while reducing mud and surface damage.

Oil and Gas Projects

Provide temporary vehicle routes, drilling-site access and equipment staging areas over soft or uneven ground.

Utility and Power Projects

Support access for bucket trucks, excavators, cranes and maintenance vehicles across farmland, grass and remote areas.

Wind and Solar Farms

Build temporary construction and maintenance routes for renewable energy projects without installing permanent roads.

Wetlands and Muddy Ground

Improve access over marshes, mud and low-bearing-capacity surfaces. Extremely weak ground may require geotextiles or additional ground preparation.

Sand and Snow

The traction surface helps improve vehicle movement on loose sand, beach areas and snow-covered construction sites.

4000 × 2000 mm BaseMats vs Portable Ground Mats

Comparison	4000 × 2000 mm BaseMat	Portable Ground Mat
Panel size	Large format	Small format
Coverage	Approximately 8 m²	Lower coverage
Number of joints	Fewer	More
Installation	Mechanical handling	Often manual
Best use	Long roads and large platforms	Short routes and local protection
Typical projects	Construction, energy and infrastructure	Events, landscaping and light construction

Installation Overview

Inspect the site and remove sharp stones, metal and large debris.
Plan the roadway width, length, turning areas and connection layout.
Use suitable lifting equipment to unload and position the panels.
Align adjacent mats and install the required connectors.
Conduct a controlled first vehicle pass and inspect panel movement.
Check the mats and connectors regularly after rain or repeated traffic.

The mats must be continuously supported by the ground. They must not be used to bridge trenches, ditches or unsupported gaps.

Why Choose XINXING?

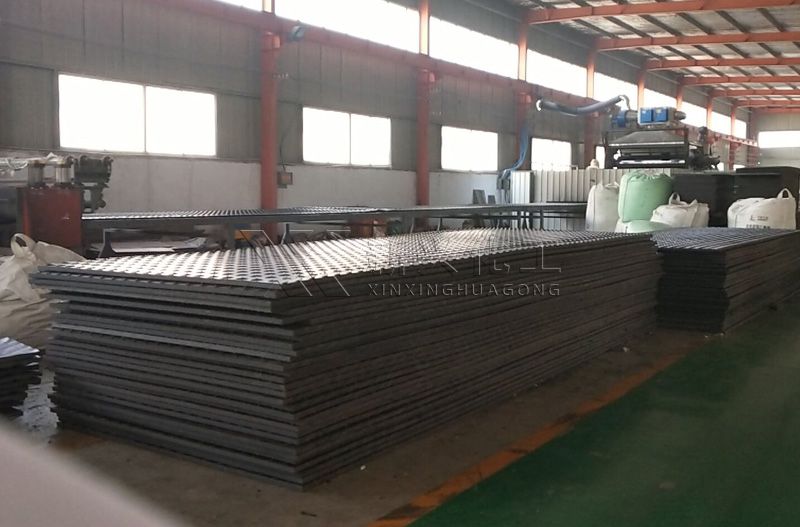

XINXING has manufactured engineering plastic products since 1989 and provides a complete range of temporary ground protection systems.

Our production capabilities include compression moulding, extrusion, CNC machining, cutting, assembly and packaging. This integrated manufacturing system helps us control product quality, custom specifications and delivery schedules.

Available custom options include:

Mat thickness
Panel colour
Surface pattern
Connector layout
Engraved or moulded logo
Private-label packaging

Our engineering team can recommend a suitable mat configuration based on your vehicle type, ground condition and required roadway dimensions.

Frequently Asked Questions

What is the size of the temporary ground mat?

Each BaseMat measures 4000 × 2000 mm and covers approximately 8 m².

What material is used?

The mats are manufactured from composite UHMWPE, which provides high impact resistance, abrasion resistance and low moisture absorption.

How much weight can the mat support?

Load capability depends on the mat thickness, panel structure, axle load, tyre pressure, traffic frequency and underlying ground condition. Please provide your project information for a suitable recommendation.
