5800×2000mm Heavy Duty Road Mats

Product introduction

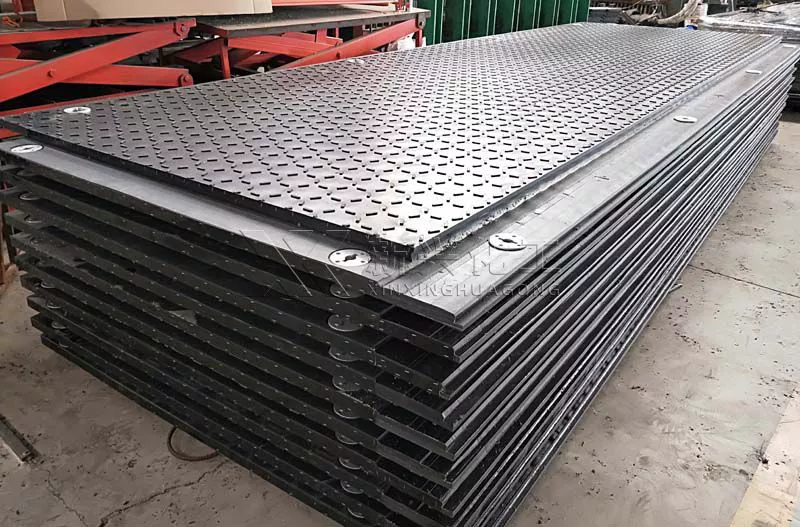

5800 × 2000mm Heavy Duty Road Mats for Temporary Access

XINXING 5800 × 2000mm heavy duty road mats are large-format Amphi Mats designed to create temporary access roads, heavy equipment routes and working platforms over mud, sand, grass, snow and other soft or sensitive ground.

Each panel provides approximately 11.6 m² of nominal coverage before allowing for overlapping edges and roadway layout. The large panel format helps cover long access routes with fewer individual mats and fewer joints.

Manufactured from high-performance thermoplastic materials, these heavy duty composite access mats provide a reusable alternative to temporary aggregate roads, timber mats and disposable ground coverings. Their overlapping design allows adjacent panels to form a more continuous roadway or equipment platform.

Final mat selection and roadway design must be based on the equipment load, axle or track pressure, ground-bearing capacity, traffic frequency and project environment.

Main Product Specifications

Specification	Product Information
Product	Heavy Duty Mobile Road Coverage Mat
Product system	XINXING Amphi Mat
Nominal length	5800 mm
Nominal width	2000 mm
Nominal panel area	Approximately 11.6 m² before overlap
Material	High-performance HDPE composite thermoplastic
Construction	Single-piece heavy duty panel
Surface	Textured roadway surface
Edge design	Overlapping panel configuration
Material properties	Reusable, recyclable, water-resistant and suitable for outdoor applications
Customisation	Available subject to technical feasibility

Request the current technical data sheet to confirm panel thickness, unit weight, lifting method, connection details and allowable load for the intended project.

Key Features of the 5800 × 2000mm Road Mat

Large-Format Ground Coverage

The 5.8-metre panel length covers more ground per mat than smaller portable panels. This can reduce the total number of panels and joints required for long temporary access routes and broad working areas.

Overlapping Roadway Design

Adjacent Amphi Mats use an overlapping configuration to create a more continuous roadway surface. The final panel orientation and connection arrangement should be selected according to vehicle movement and site conditions.

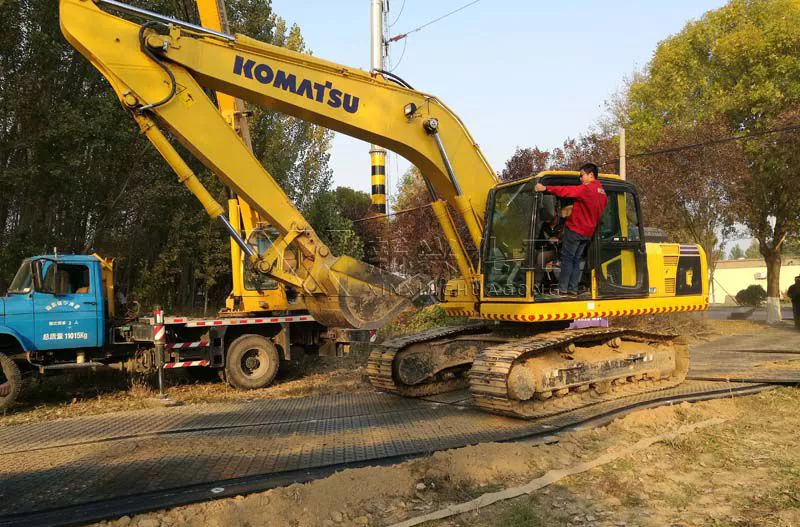

Heavy Equipment Access

The mats are intended for temporary routes used by trucks, construction vehicles, cranes, excavators and other heavy plant. Equipment suitability must be checked against the complete vehicle and ground information.

Textured Surface

A textured roadway surface helps improve tyre or track contact during forward movement. Mud, stones and other debris should be removed regularly to maintain effective surface contact.

Single-Piece Thermoplastic Construction

The one-piece panel construction avoids the moisture absorption, rotting and splintering associated with traditional timber mats.

Outdoor Material Protection

The product description identifies UV protection and static-dissipative properties within the thermoplastic material formulation for outdoor and industrial applications.

Reusable and Recyclable

The non-absorbent thermoplastic surface can be cleaned after use and the panels can be moved to another project. The material is also recyclable at the end of its usable life.

Suitable Ground Conditions

Mud and Wet Soil

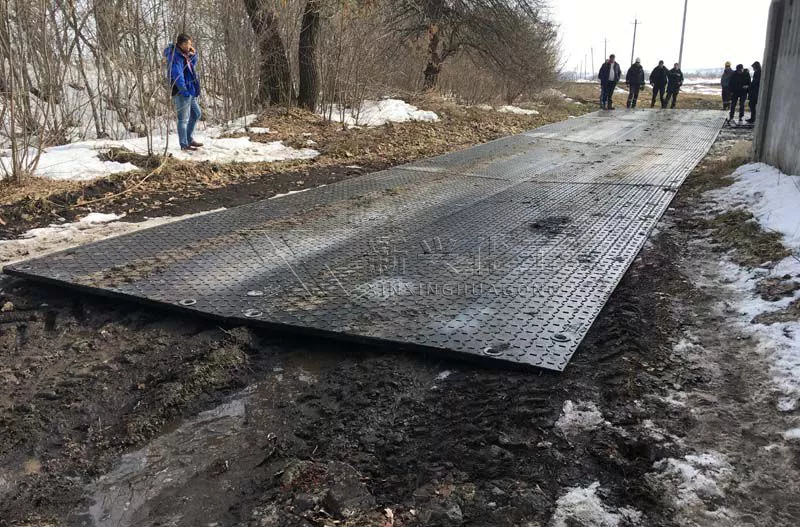

Create temporary vehicle routes over muddy construction sites, pipeline projects and utility work areas while helping reduce deep rutting and equipment bogging.

Sand and Loose Ground

Spread vehicle loads over a wider surface when equipment must cross sandy access routes, coastal work areas or loose construction ground.

Wetlands and Sensitive Terrain

Provide a removable access surface that can help reduce direct vehicle contact with environmentally sensitive ground. Additional geotextile separation or site preparation may be required.

Snow-Covered or Seasonal Ground

Establish temporary access where snow, thawing ground or seasonal weather makes conventional unprotected routes unreliable.

Grass and Prepared Surfaces

Help protect grass, landscaped areas and prepared ground from repeated vehicle traffic during construction, maintenance and temporary projects.

Extremely weak, saturated or unstable ground may require drainage, geotextiles, subgrade preparation or engineering controls in addition to the road mats.

Typical Applications

Construction and Civil Engineering

Create temporary access roads, turning areas, equipment routes and work platforms for trucks, excavators, cranes and construction machinery.

Oil, Gas and Pipeline Projects

Provide access to drilling locations, pipeline routes, maintenance zones, equipment staging areas and remote worksites.

Utilities and Power Transmission

Support temporary access for bucket trucks, cranes, cable-laying machinery and maintenance vehicles across farmland, grass and undeveloped ground.

Wind and Renewable Energy

Build temporary routes and equipment platforms for wind farm construction, solar projects, power infrastructure and maintenance operations.

Industrial and Petrochemical Sites

Establish temporary vehicle routes, storage areas and work platforms where permanent road construction is unsuitable or unnecessary.

Emergency and Disaster Access

Provide temporary access routes for emergency vehicles, recovery machinery and supporting equipment in locations without suitable permanent roads.

Temporary Parking and Staging Areas

Connect multiple panels to form temporary parking zones, loading areas, equipment staging surfaces and site compounds.

Large-Format Road Mats vs Portable Ground Mats

Comparison	5800 × 2000mm Road Mats	Smaller Portable Mats
Panel format	Large-format heavy duty panel	Smaller manually positioned panel
Nominal coverage	Approximately 11.6 m² per panel before overlap	Varies according to mat dimensions
Handling	Mechanical handling should be planned	Some models can be handled manually
Best suited for	Long access roads and broad equipment platforms	Short routes and local surface protection
Number of joints	Fewer panels required over large areas	More joints required for equivalent coverage
Typical projects	Construction, energy, pipeline and infrastructure	Landscaping, events, utilities and light access

How to Select the Right Road Mat System

Provide the following project information before confirming the mat configuration:

Vehicle and equipment types
Maximum gross vehicle weight
Maximum axle load
Tyre dimensions and inflation pressure
Track type, width and contact length
Ground-bearing capacity
Soil type and moisture condition
Required roadway length and width
Number of vehicle passes
Turning, braking and slope conditions
Installation duration
Project location and delivery destination

Panel dimensions alone do not determine load capacity. Mat thickness, material structure, axle load, tyre or track pressure, ground strength, roadway layout and vehicle movement must be evaluated together.

Installation Guidelines

Survey the route and identify weak ground, slopes, drainage channels, voids and underground services.
Remove sharp stones, metal, tree stumps and large debris that could create unsupported points beneath the panels.
Install geotextile separation or prepare the subgrade when recommended by the project engineer.
Use approved mechanical equipment and lifting procedures to unload and position the large-format panels.
Align the panels according to the required travel direction and overlapping edge configuration.
Install the specified connection hardware or locking arrangement where applicable.
Conduct a controlled first vehicle pass and inspect panel movement, ground settlement and joint alignment.
Continue monitoring the roadway during use, especially after heavy rain or changing ground conditions.

The mats are ground-supported roadway panels. They must not be used to bridge open trenches, drainage channels or unsupported gaps.

Operating and Maintenance Guidelines

Inspect every panel before installation and after removal.
Do not use panels with serious cracks, damaged edges or permanent structural deformation.
Keep the roadway surface clear of excessive mud, stones and debris.
Avoid sudden braking, aggressive turning and unnecessary wheel spinning.
Submit steel-track dimensions and operating movements for review before use.
Check joints and overlapping edges regularly for movement or separation.
Wash the panels after use when required and allow them to drain before storage.
Store panels on a firm, level supporting surface using an approved stacking arrangement.

Why Choose XINXING Heavy Duty Road Mats?

XINXING has manufactured engineering plastic and matting products since 1989. The company supplies portable ground protection mats, large-format access panels, Amphi Mats and related support products.

Our manufacturing resources include mould pressing, extrusion, CNC machining, cutting, assembly and packaging workshops. The company's total manufacturing site area exceeds 100,000 m².

These capabilities support standard production and project-specific requirements involving panel dimensions, thickness, surface design, connection positions, colour and company identification.

Our engineering and sales teams can recommend a suitable temporary roadway configuration based on the equipment load, ground condition, roadway layout and operating environment.

Frequently Asked Questions

What is the exact size of this heavy duty road mat?

The nominal panel dimensions are 5800 mm long and 2000 mm wide.

How much ground does one panel cover?

A 5800 × 2000 mm panel provides approximately 11.6 m² of nominal area. Effective installed coverage will be slightly lower where panels overlap.

What material is the road mat made from?

The mat is manufactured from a high-performance HDPE composite thermoplastic material suitable for reusable outdoor ground protection and temporary access.

How much load can the mat support?

Load suitability cannot be determined from the panel dimensions alone. The current technical data sheet and project information must be reviewed to confirm the appropriate vehicle load, ground condition and installation layout.

What are the panel thickness and unit weight?

Thickness and unit weight should be confirmed from the current product drawing before quotation, transportation planning and installation.

Can these large panels be installed manually?

Mechanical handling should be planned for large-format 5800 × 2000 mm panels. The approved lifting method and equipment must be confirmed before installation.

Can the mats be used on muddy ground?

Yes. The mats are intended for temporary access over mud and other soft surfaces. Extremely weak or saturated ground may require geotextiles, drainage or subgrade preparation.

Are the mats suitable for steel-tracked equipment?

Steel tracks can create high point loads and may damage the mat surface or connections during sharp turns. Submit the machine weight, track dimensions and operating movements for technical review before use.

Can the panel specifications be customised?

Amphi Mat dimensions and related configurations may be customised subject to moulding method, technical feasibility and order requirements.

What information is required for a quotation?

Provide the equipment type, gross weight, axle or track load, tyre or track dimensions, ground conditions, roadway length and width, traffic frequency, project location, quantity and delivery destination.
